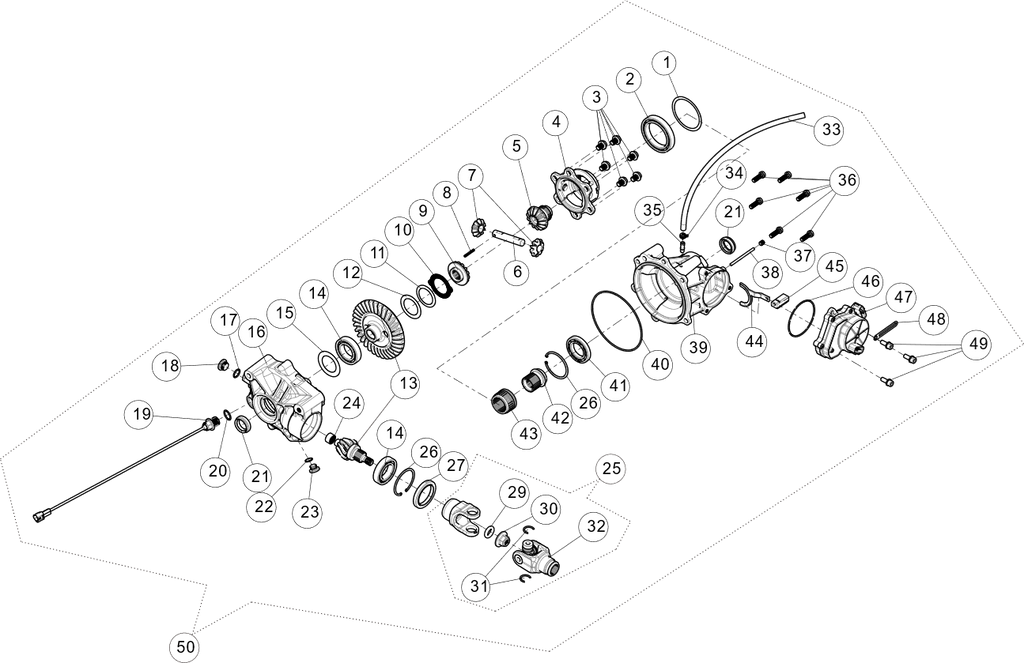

  • Exploded schematic of Segway AT6 SGW570F Section 79, callout 49 is the bolt m8x20
Segway AT6 SGW570F Gasket (0.1) - Q02F20007002

Segway AT6 SGW570F Gasket (0.1) - Q02F20007002

$14.00 $22.00
Details

Genuine Segway Powersports Gasket (0.1), Part No. Q02F20007002

Fitment

  • Segway SGW570F-A1: Section 79, callout #1
  • Segway SGW570F-A1: Section 80, callout #1

Part details

  • Part type: Gasket
  • Qty per assembly: 1

Assembly Diagram Reference

Numbers below match the callouts in the schematic image.

# Part Part Number Qty
1 Gasket (0.1) (this part) Q02F20007002 1
1 Gasket (0.15) Q02F20007003 1
1 Gasket (0.2) Q02F20007004 1
2 Bearing 61912 GBT000276035 1
3 Bolt M10x16 GBT090741007 6
4 Differential Housing Q02F20201001 1
5 Differential Bevel Gear Q02F20202001 1
6 Differential Planetary Gear Shaft Q02F20205001 1
7 Differential Planetary Gear Q02F20204001 2
8 Spring-type Straight Pin 4x30 GBT008791001 1
9 Front Axle Bevel Gear Q02F20203001 1
10 Anti-rotation Gasket Q02F20004001 1
11 Disc Spring 40x53x1 Q02F20005001 1
12 Shims 40x57x0.1 Q02F20006002 1
12 Shims 40x57x0.2 Q02F20006003 1
12 Shims 40x57x0.5 Q02F20006004 1
13 Drive&driven Bevel Gear Kit Q02F20100001 1
14 Bearing 6007 GBT000276037 2
15 Shims (0.1) Q02F20003002 1
15 Shims (0.2) Q02F20003003 1
15 Shims (0.5) Q02F20003004 1
16 Front Axle Gear Box Q02F40201001 1
17 O-Ring 16.4x2.5 Q02F00009001 1
18 Plug M18x1.5 Q02F00008001 1
19 Vehicle Speed Sensor Q01F50300002 1
20 O-Ring 19.4x2.3 Q02F00007001 1
21 Oil Seal 24x38x8 Q02F00003001 2
22 O-Ring 13x1.5 Q02F00006001 1
23 Plug M14 F02C10008001 1
24 Needle Bearing HK152112 Q02F40202001 1
25 Univerasl Joint Combination Q02F10200001 1
26 Circlip 62 GBT000893008 2
27 Oil Seal 48x65x9 Q02F00004001 1
29 O-Ring 14x6.8 Q02F00002001 1
30 Locked Nut M14x1.5 Q02F00001001 1
31 Semicircular Opening Circlip Q02F10203001 2
32 Univerasl Joint Q02F10210001 1
33 Vent Pipe Q02F00005001 1
34 Spring Band Hose Clamps QCT006211003 1
35 Air Tap Q02F04103001 1
36 Bolt M8x28 GBT090741006 6
37 Plug M8x10 Q02F40103001 1
38 Cylindrical Pin 5x75 Q02F30113001 1
39 Front Axle Gear Box Cover Q02F40101001 1
40 O-Ring 140x2.65 Q02F40102001 1
41 Bearing 16007 GBT000276036 1
42 Divide Device Connection Q02F20001001 1
43 Sliding Sleeve Q02F20002001 1
44 Fork Q02F30111001 1
45 Spline Q02F30112001 1
46 O-Ring 72.7x2.4 Q02F50001001 1
47 Transfer Case Assembly Q02F51000001 1
48 Clamp (12x75) Q02F00011001 1
49 Bolt M8x20 GBT090741004 3
50 Front Differential Assy Q02F00000001 1

Genuine Segway Powersports replacement part, supplied to OEM specification. Before ordering, confirm the part number against the exploded schematic image, which shows this part’s exact position (callout number) within its assembly. Where a compatibility note appears in the listing, it takes precedence. Order the quantity shown under “Qty per assembly” for a complete replacement; hardware and seals are sold individually unless stated otherwise. Unsure about fitment? Contact us with your model and VIN before purchase.
