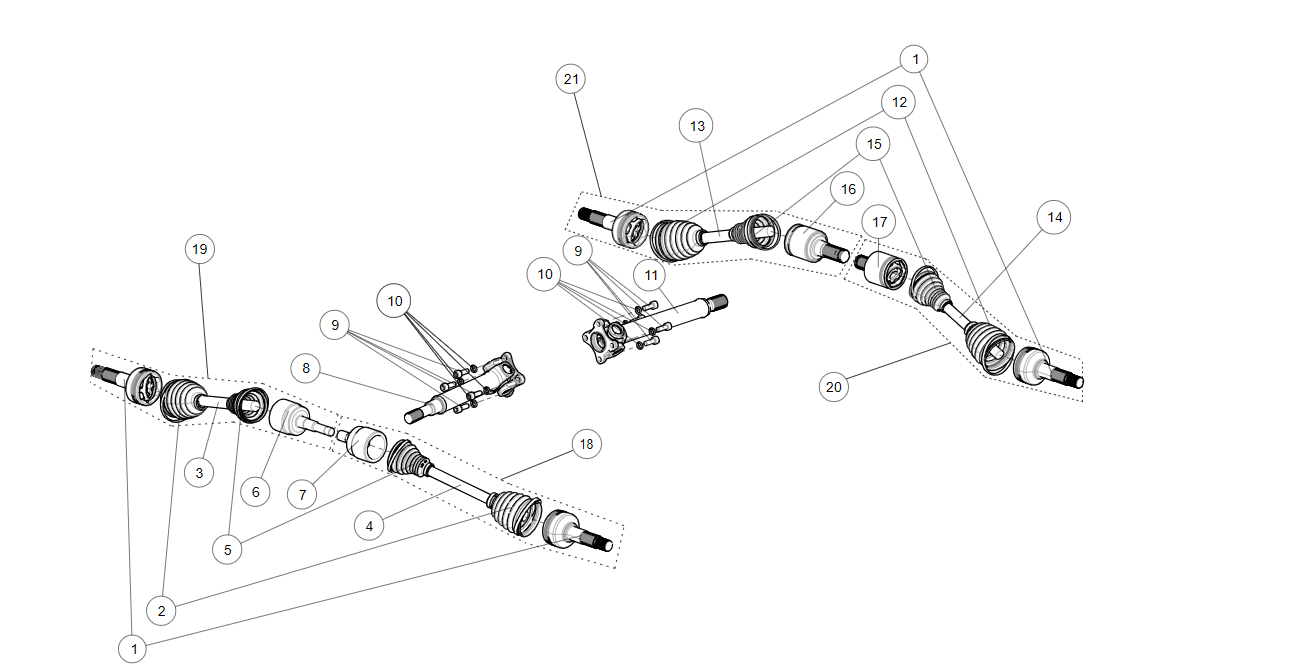

  • Exploded schematic of Segway AT6 SGW570F Section 72, callout 21 is the rr drive shaft assy (no diff)
Segway AT6 SGW570F Rl Drive Shaft Assy (No Diff) - A02P14000003

Segway AT6 SGW570F Rl Drive Shaft Assy (No Diff) - A02P14000003

$14.00 $22.00
Details

Genuine Segway Powersports Rl Drive Shaft Assy (No Diff), Part No. A02P14000003

Fitment

  • Segway SGW570F-A1: Section 72, callout #20

Compatibility note

  • Q02R00000007

Part details

  • Part type: Shaft
  • Qty per assembly: 1

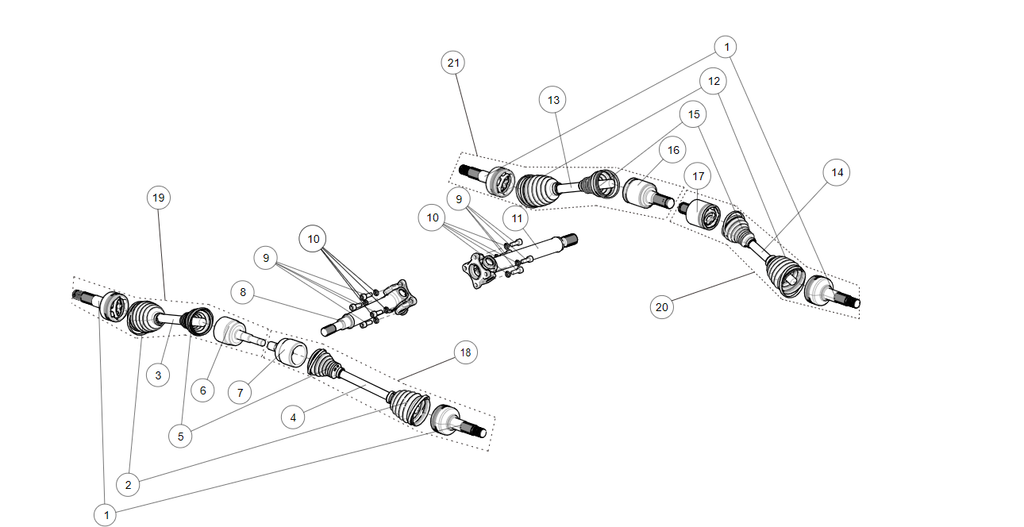

Assembly Diagram Reference

Numbers below match the callouts in the schematic image.

# Part Part Number Qty
1 Outer Joint Assy (Gsp) A02P13001001 4
2 Outer Joint Dust Cover Assembly A02P11002001 2
3 Intermediate Shaft (Gsp) A02P12002001 1
4 Intermediate Shaft (Gsp) A02P11002002 1
5 Inner Joint Dust Cover Assembly A02P11003001 2
6 Inner Joint Assy (Gsp) A02P12001001 1
7 Inner Joint Assy (Gsp) A02P11001002 1
8 Front Drive Shaft Assembly A01P21100003 1
9 Bolt M10x1.25x25 GBT000701003 8
10 Spring Washer 10 GB0000093005 8
11 Rear Dive Shaft (Diff) A02P22100002 1
11 Front Drive Shaft Assembly A01P21100002 1
12 Outer Joint Dust Cover Assembly A02P11002001 2+2
15 Inner Joint Dust Cover Assembly (Gsp) A02P13004001 2+2
18 Fl Constant Velocity Drive Shaft Assy A02P11000002 1
19 FR Constant Velocity Drive Shaft Assy A02P12000001 1
20 Rl Drive Shaft Assy (Diff) A02P14000002 1
21 RR Drive Shaft Assy (Diff) A02P13000002 1
20 Rl Drive Shaft Assy (No Diff) (this part) A02P14000003 1
21 RR Drive Shaft Assy (No Diff) A02P13000003 1

Genuine Segway Powersports replacement part, supplied to OEM specification. Before ordering, confirm the part number against the exploded schematic image, which shows this part’s exact position (callout number) within its assembly. Where a compatibility note appears in the listing, it takes precedence. Order the quantity shown under “Qty per assembly” for a complete replacement; hardware and seals are sold individually unless stated otherwise. Unsure about fitment? Contact us with your model and VIN before purchase.
