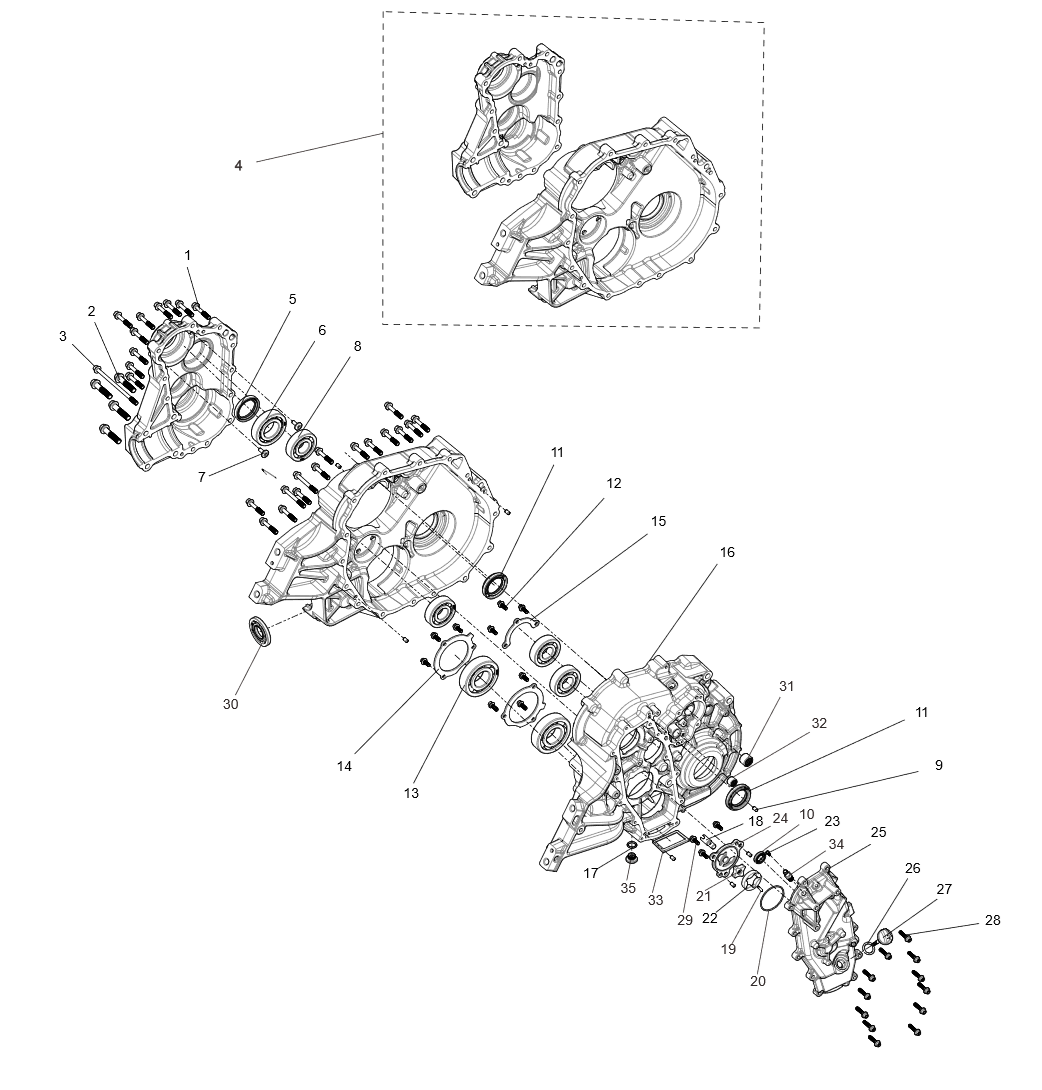

  • Exploded schematic of Segway Fugleman UT10 Gearbox Combination With Diff, callout 16 is the left gearbox body (with diff)
Segway Fugleman UT10 Left Gearbox Body (With Diff) - E02F31101002

Segway Fugleman UT10 Left Gearbox Body (With Diff) - E02F31101002

$14.00 $22.00
Details

Genuine Segway Powersports Left Gearbox Body (With Diff), Part No. E02F31101002

Fitment

  • Segway UT10 (U1): Gearbox Combination With Diff, callout #16

Part details

  • Part type: Gear
  • Qty per assembly: 1

Assembly Diagram Reference

Numbers below match the callouts in the schematic image.

# Part Part Number Qty
1 Bolt M8x40 F01000017001 22
2 Bolt M10x1.25x45 E02F32113001 4
3 Bolt M8x125 E02F32001001 1
4 Right Gearbox Assembly Machining Parts E02F32110001 1
5 Oil Seal 42x55x8 F01C10003001 1
6 Bearing 6207 GBT000276010 1
7 Hexagon Socket Mushroom Head Screw T03000007002 2
8 Bearing 6305 GBT000276012 4
9 Dowel Pin 6x10 GBT001192001 8
10 Oil Seal 15x25x5 F01F10011001 1
11 Oil Seal 38x55x7 D02P22202001 2
12 Bolt M6x16 F01000002001 4
13 Bearing 6305 GBT000276020 2
14 Triaxial Bearing Press Plate E02F23004001 2
15 Countershaft Bearing Press Plate E02F22014001 1
16 Left Gearbox Body (With Diff) (this part) E02F31101002 1
17 O-Ring 13.8x2.5 F01G00005001 1
18 Oil Pump Shaft D01P21404001 1
19 Needle Roller 4x15.8 GBT000309001 1
20 O-Ring 52x2 D01P21303001 1
21 Inner Gerotor D01P21402001 1
22 Outer Gerotor D01P21403001 1
23 Flow Orifice ∅1 F01C10004001 1
24 Oil Pump Cover E02F31202001 1
25 Oil Pump Body E02F31210001 1
26 O-Ring 18x3.5 E01C20103001 1
27 Oil Dipstick E01C20102001 1
28 Bolt M8x60 E02F32001002 12
29 Bolt M6x25 F01000005001 3
30 Oil Seal 27x60x7 D01P22201001 1
31 Needle Roller Bearing HK1516 GBT012764003 1
32 Needle Roller Bearing HK121612 GBT012764001 1
33 Strainer Filter E02F00100001 1
34 Breathing Joint Q01F41300001 1
35 Engine Drain Plug M14 F01G00200001 1

Genuine Segway Powersports replacement part, supplied to OEM specification. Before ordering, confirm the part number against the exploded schematic image, which shows this part’s exact position (callout number) within its assembly. Where a compatibility note appears in the listing, it takes precedence. Order the quantity shown under “Qty per assembly” for a complete replacement; hardware and seals are sold individually unless stated otherwise. Unsure about fitment? Contact us with your model and VIN before purchase.
