Segway Villain SGW1000F Central Display - S03M32000001

Segway Villain SGW1000F Central Display - S03M32000001

$14.00 $22.00
Details

Genuine Segway Powersports Central Display, Part No. S03M32000001

Fitment

  • Segway SGW1000F-S1: Touch Screen, callout #2
  • Segway SGW1000F-S2: Touch Screen, callout #2
  • Segway UT10 (U1): Central Screen Components, callout #6

Part details

  • Part type: OEM replacement part
  • Qty per assembly: 1

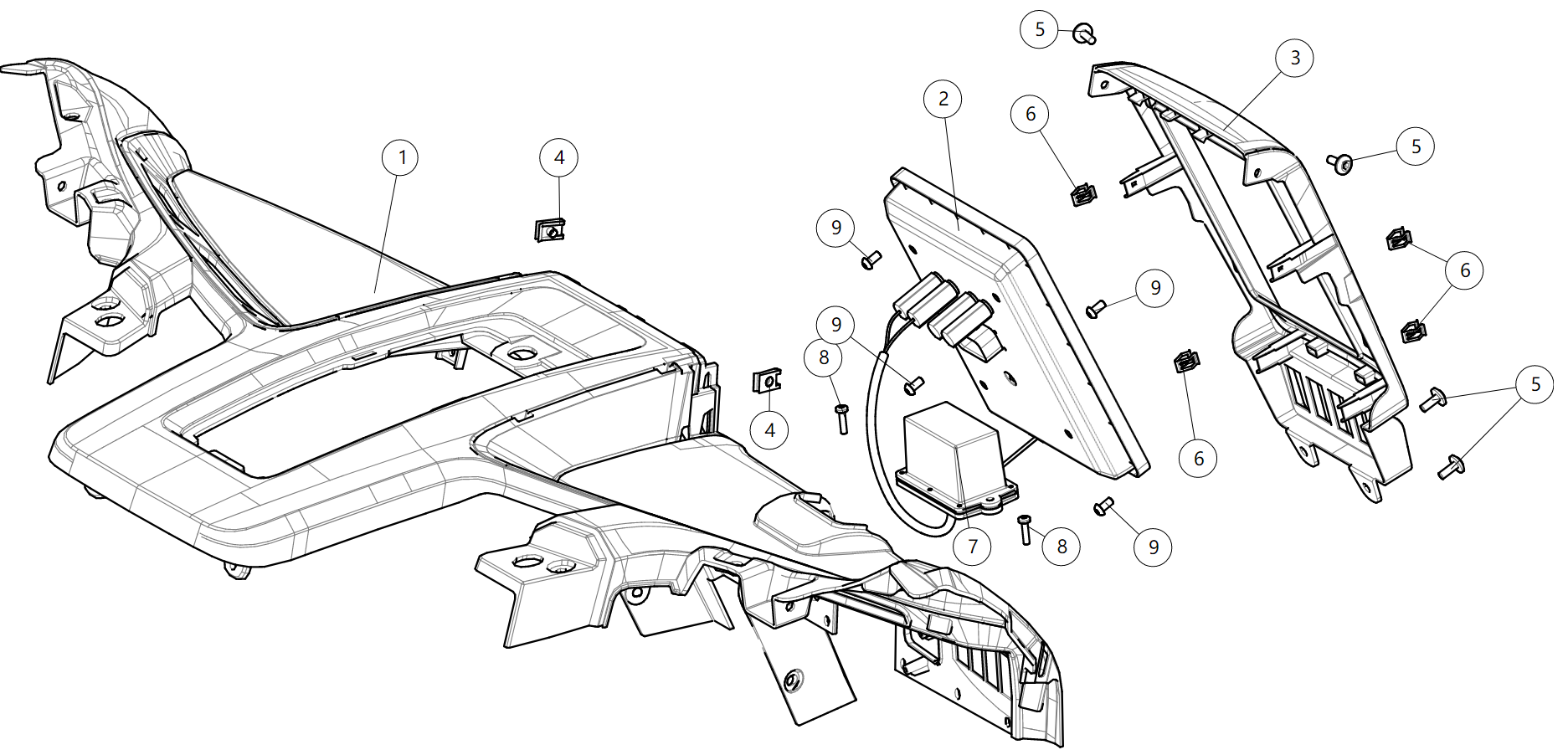

Assembly Diagram Reference

Numbers below match the callouts in the schematic image.

# Part Part Number Qty
1 Instrument Panel S01H10700001 1
2 Touch Screen (this part) S03M32000001 1
3 Instrument Switch Cover S01H11100001 1
4 Nut Clamp M6 T04000002001 2
5 Large Pan Head Hexagon Socket Bolt M6x16 T03000007002 4
6 Spring Buckle T04000015001 4
7 Antenna Combination S01M32100001 1
8 Cross Recessed Pan Head Screw M5x20 GBT000818006 2
9 Hexagon Socket Flat Head Screw M6x12 GBT000702001 4

Genuine Segway Powersports replacement part, supplied to OEM specification. Before ordering, confirm the part number against the exploded schematic image, which shows this part’s exact position (callout number) within its assembly. Where a compatibility note appears in the listing, it takes precedence. Order the quantity shown under “Qty per assembly” for a complete replacement; hardware and seals are sold individually unless stated otherwise. Unsure about fitment? Contact us with your model and VIN before purchase.
